NX CAD for Product Engineering

NX CAD for Product Engineering accelerates design accuracy, reduces costs, and helps you launch better products faster with advanced virtual prototyping.

Product Description

NX CAD for Product Engineering

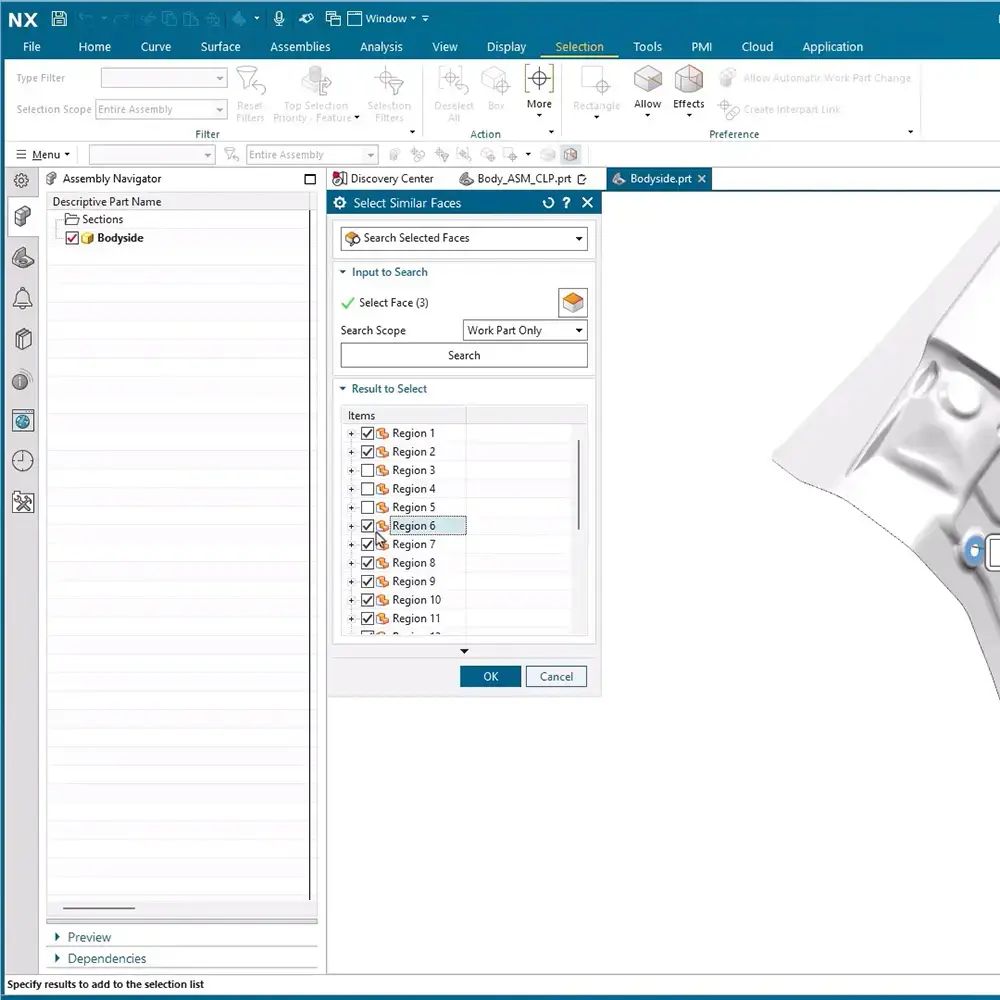

NX CAD is an advanced mechanical design software that helps bring products to market faster, with fewer physical prototypes and lower development costs. With powerful tools for 3D modeling, simulation, and electrical integration, NX CAD accelerates every stage of the product development lifecycle.

NX CAD for Product Engineering

Use virtual models to validate designs early and reduce costly rework. NX CAD enables engineers to deliver high-quality products right the first time. It supports a wide range of modeling techniques—including parametric, direct, and facet-based—to suit every project and team.

Accelerate Design, Reduce Costs

  • 50% faster development cycles
  • 60% boost in productivity
  • 25% average cost savings across the lifecycle
  • Reduced time-to-market with fewer redesigns
  • Improved collaboration with mechanical, electrical, and automation teams

Integrated Design Tools

  • NX CAD offers a complete MCAD and ECAD suite:

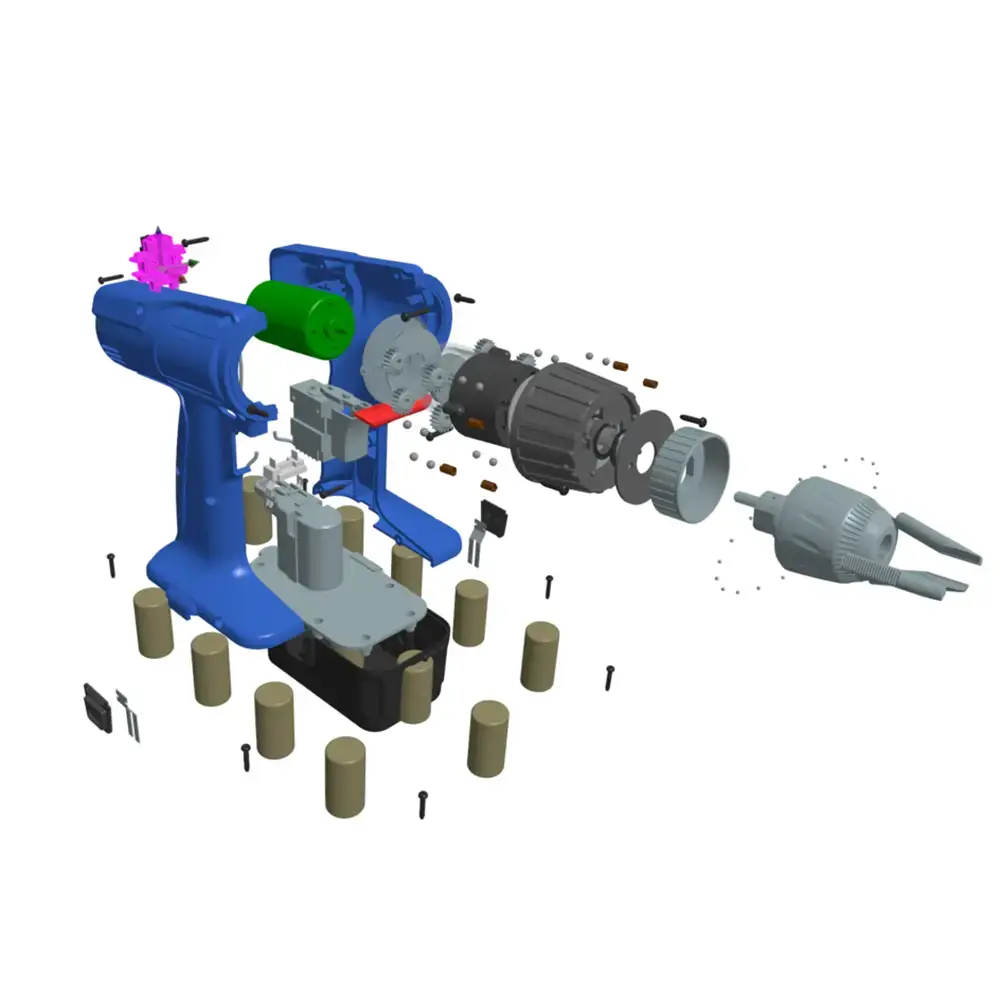

  • MCAD: Powerful tools for mechanical and surface modeling, jigs and tooling, seat systems, and aerospace structures
  • ECAD: Integrated electrical design with real-time collaboration on the same backbone as mechanical and software teams

Interoperability: Exchange files easily with suppliers, using Parasolid, JT, and Teamcenter integrations

Optimized for Your Workflow

NX CAD supports modern digital workflows with:

  • Machine and plant automation design
  • Industry-specific templates for Aerospace, Automotive, Medical Devices, Marine, and more
  • AI-powered productivity enhancements
  • Secure versioning with PLM integration

Deployment Options

NX CAD is available in three formats:

🖥 On-Premise
☁️ Cloud-Based
🌐 Hybrid / Cloud-Connected

Choose the deployment model that fits your infrastructure and scalability goals.

Flexible Licensing and Scaling

  • Subscription, Perpetual, or Token-based licenses
  • Cloud-connected bundles to reduce IT overhead
  • Built on the Siemens Xcelerator ecosystem for smooth integration across tools
NX CAD for Product Engineering - REQUEST A QUOTE
